Beskrivelse

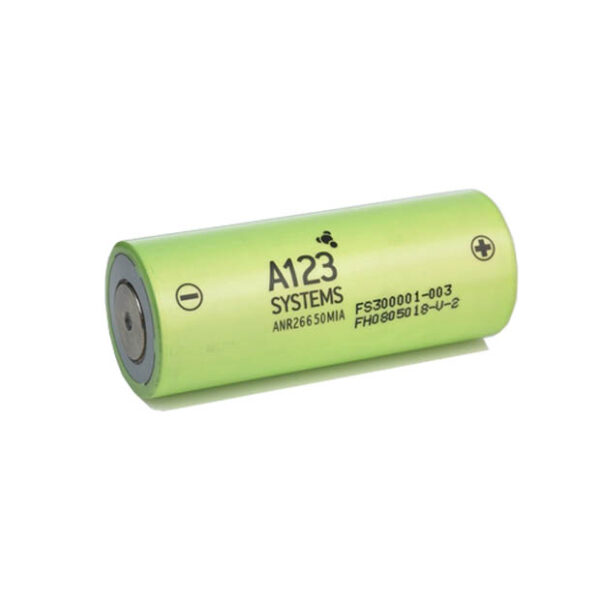

With patented Nano-Phosphate technology, A123-26650 cells boast many advantages over Li-Poly, etc:
Safety, Faster Charge Rate, Cycle Life, Extended Shelf Life, Durable metal case and Lower cost
Nominal Voltage: 3.3V
Nominal Capacity 2300mAh
Recommended Charge : 3A to 3.6V CCCV (constant current – constant voltage)
Recommended Fast Charge: 10A to 3.6V CCCV
Fast charge time: 15 minutes
Continuous Discharge: 30C
Pulse: 60C
Dimensions 26mm(1.04″) dia. x 65mm(2.5″) ht
Weight: 70 grams
Cycle Life at 10C discharge: 1000+
Applications: power tools, RC racing car, high power EV,etc
Power: Over 3000 W/kg and 5800 W/L
Safety: Excellent abuse tolerance and environmentally friendly
Life: Excellent calendar life, 10X cycle life vs. conventional lithium ion

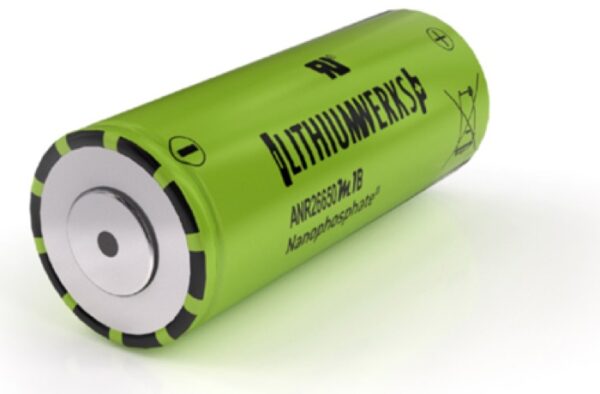

A123 batteries use a new type of cell construction based on a dual plate tubular design optimized to deliver very
high power with high efficiency. This new design does not use crimp seals and instead opts for a more advanced
all laser welded construction optimized for very low humidity penetration over the life of the battery as
well as stronger, thicker dual plate headers.
.
